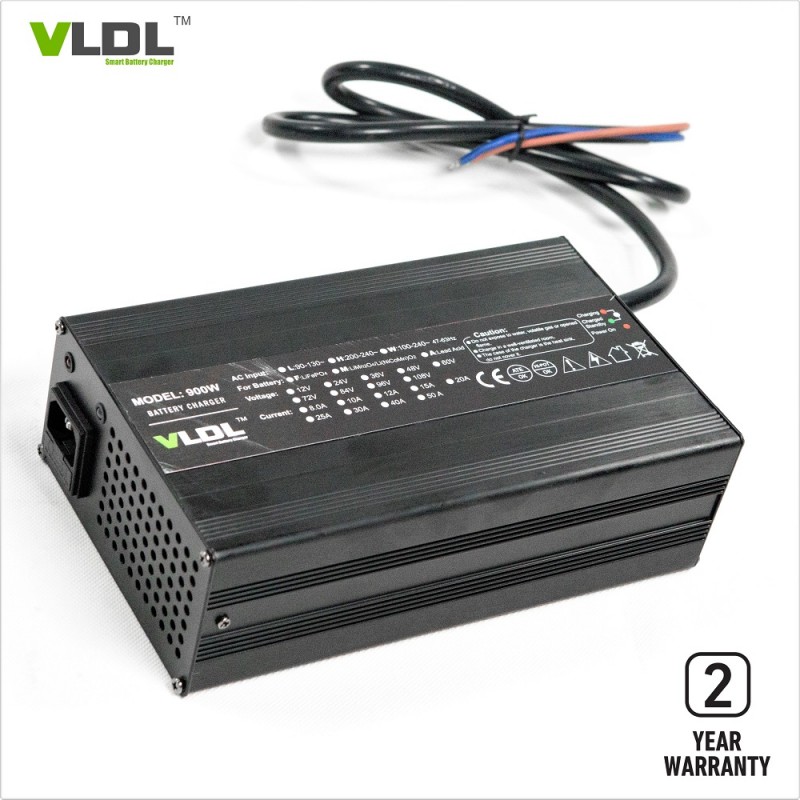

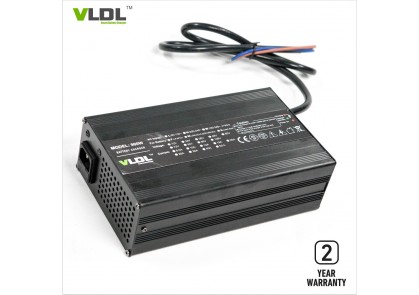

UL certified 24V 20A Lithium Battery Charger

UL Certified 24V 20A Lithium Battery Charger

Brief Description:

Designed for 24V lithium battery input with universal 90~264Vac with PFC and rated output voltage is 24V 20A. Smart max charging voltage is 29.2V / 29.4V Li-ion or LiFePO4 batteries. Intelligent 4 steps charging with pre-charge, CC, CV and automatic cut - off, this charger will charge your racing battery very fast, with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.

Features

Optional charging methods: Li-ion / LiFePO4 batteries.

Advanced high frequency switching mode power supply technology.

DC output isolated from AC input.

Automatic worldwide Input 110/230Vac(90~264Vac) with PFC, 50Hz~60Hz.

Charging parameters are insensitive to the AC input line voltage variations.

Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.

Aluminum casing, light weight, portable.

100% full load burn-in test.

2 years warranty.

Technical Specs.:

Dimensions(LxWxH): 250 x 135 x 70 mm

Net weight: 2.8 KG

Max charging voltage(CV): 29.2V / 29.4V

Max output current (CC): 20 amps

Charging method: Pre-charge, CC, CV, floating / trickle or shut off

AC input voltage: 90 ~ 264Vac with PFC

AC input freq.: 50 / 60 Hz

AC plug: custom-made

Output connector type: customized by applications

Enclosure: Aluminum
