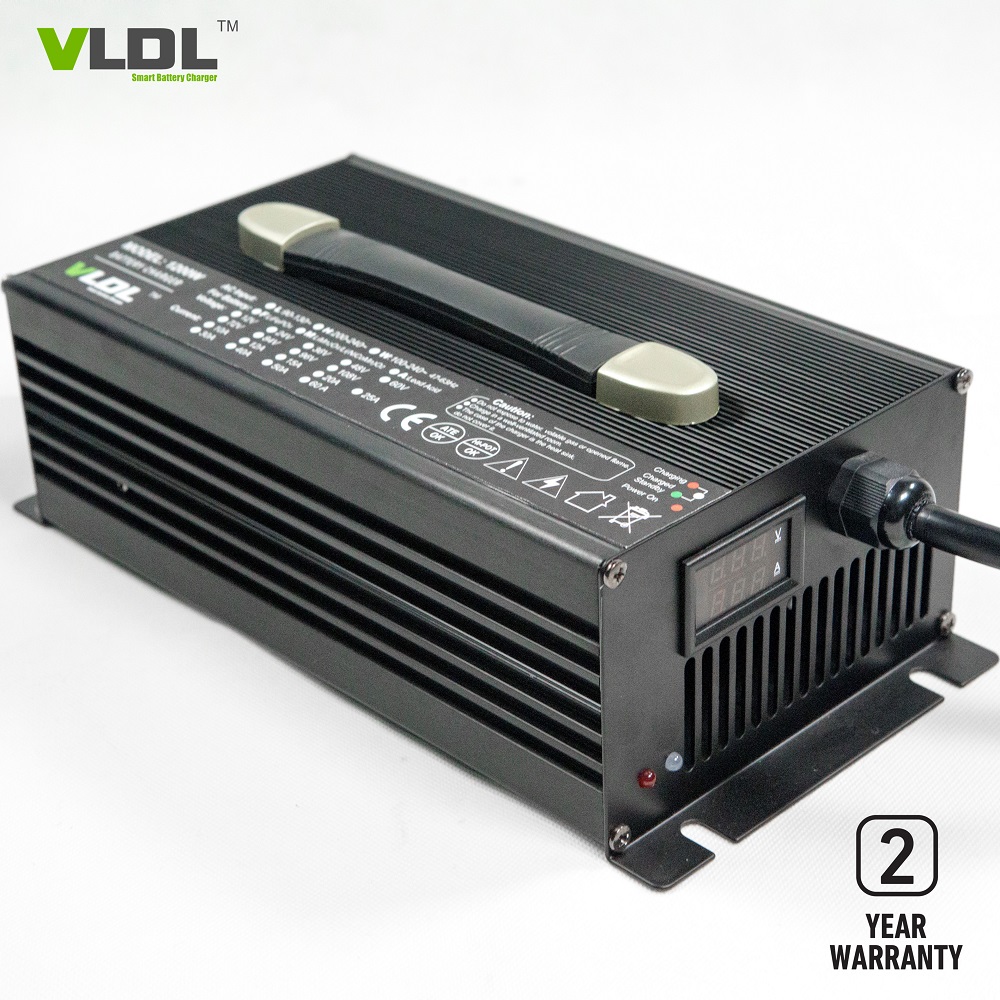

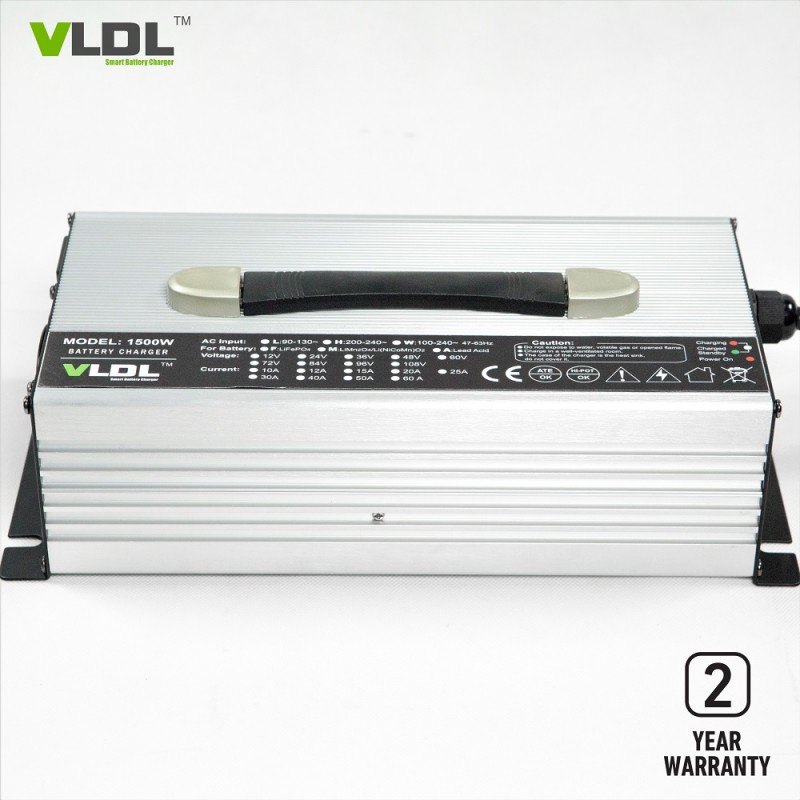

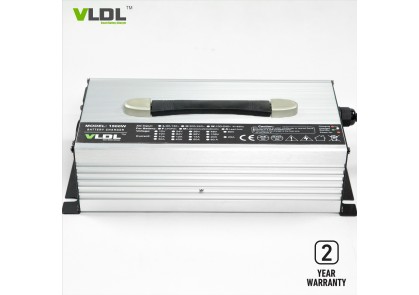

Smart 72V 20A LiFePO4 Battery Charger
Color Option: Silver or Black
Charging method: Pre-charge, CC, CV and Cut-off
Applied to battery types : 72V Li-ion/LiFePO4/LiMnO2 battery pack
Dimensions: 330 x 150 x 90mm
Input voltage: 110 or 230Vac
Max charging: Automatic 86.7V / 87.6V 20Amps charging
- Product Details
Smart 72V 20A LiFePO4 Battery Charger, 110V or 230Vac
Brief Description:
72V 20Amps intelligent battery charger is designed for lithium or lead acid battery, input with single 230Vac and rated output voltatge is 72 Volt 20 amps. Smart max charging voltage is 88.2V for lead acid type batteries and 86.7V or 87.6V for Lithium batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and protect your battery life to the max. Aluminum housing, light weight and portable.
Features:
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Input 110V or 230Vac, 50Hz~60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..
Possibility to customize charging curve for request.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Efficiency > 90%.
Forced ventilation with fans.
100% full load burn-in test.
Aluminum casing, light weight, portable.
Technical Specs.:
1) Dimensions(LxWxH): 330 x 150 x 90 mm
2) Net weight: 6.5 KG
3) Max charging voltage(CV): 87.6 / 86.7 volts
4) Floating voltage: /
5) Max output current (CC): 20 amps
6) Charging method: Pre-charge, CC, CV, floating / trickle or shut off
7) AC input voltage: 110V or 230Vac
8) AC input freq.: 50 / 60 Hz
9) AC plug: custom-made
10) Output connector type: customized by applications
11) Enclosure: Aluminum
