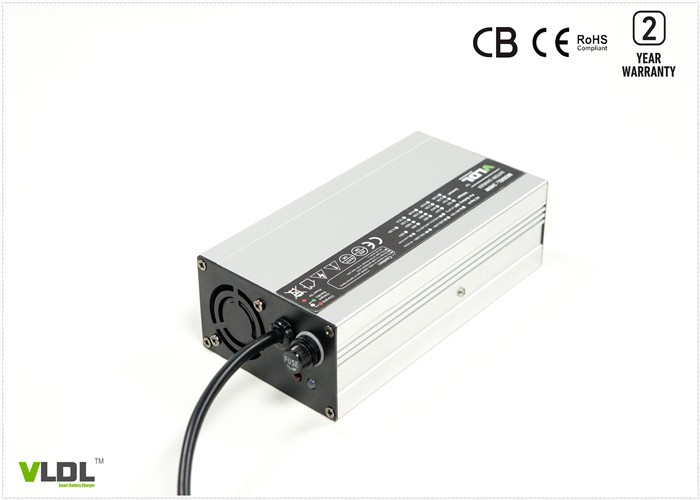

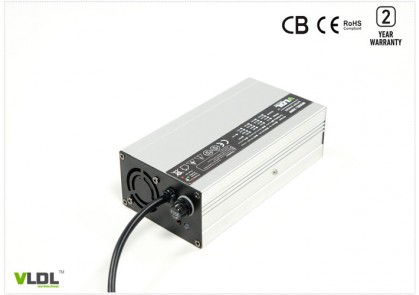

E-Bike Charger 24V 7A

E-Bike Charger 24V 7A

Brief Description:



Electric scooters smart battery charger 24V 7A for lithium or SLA battery pack, 2 year warranty. Max 29.2V or 29.4V charging voltage for 24V SLA, AGM, GEL, lithium (LiFePO4, Li-ion, LiMO2) battery packs. Automatic 4 steps transition of pre-charge, CC, CV and floating / trickle or shut off. Worldwide input with 110 - 240Vac, use it anywhere. Aluminum housing, light weight and portable.



Features:



◆ Advanced high frequency switching mode power supply technology.

◆ DC output isolated from AC input.

◆ Auto worldwide Input 110 / 230Vac (90 ~ 264Vac), 50Hz~60Hz.

◆ Charging parameters are insensitive to the AC input line voltage variations.

◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

◆ 2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..

◆ Possibility to customize charging curve for request.

◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

◆ Efficiency > 95%.

◆ Forced ventilation with fans.

◆ 100% full load burn-in test.

◆ Aluminum casing, light weight, portable.



Technical Specs.:



1) Dimensions(LxWxH): 170 x 90 x 50mm

2) Net weight: 1.0 KG

3) Max charging voltage(CV): 29.4 / 29.2 volts

4) Floating voltage: customized

5) Max output current (CC): 7 amps

6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 - 240Vac worldwide

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum



Output series: 240W     Size: 170×90×50 mm     Net weight: 1.0 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
AC Input: 85~264V   Frequency: 47~63HZ	VL1210L	12V LiFePO4 Battery		14.6V	10A	CC5~8%
	VL1210	12V Lead-acid Battery	13.5V	14.7V	10A	CC20%
	VL2407LM	24V Li-MnO2 Battery		29.4V	7A	CC5~8%
	VL2407L	24V LiFePO4 Battery		29.2V	7A	CC5~8%
	VL2407	24V Lead-acid Battery	27.6V	29.4V	7A	CC20%
	VL3605LM	36V Li-MnO2 Battery		42V	5A	CC5~8%
	VL3605L	36V LiFePO4 Battery		43.8V	5A	CC5~8%
	VL3605	36V Lead-acid Battery	41.4V	44.1V	5A	CC20%
	VL4804LM	48V Li-MnO2 Battery		54.6V	4A	CC5~8%
	VL4804L	48V LiFePO4 Battery		43.8V	4A	CC5~8%
	VL4804	48V Lead-acid Battery	55.2V	58.8V	4A	CC20%
	VL6003L	60V LiFePO4 Battery		73V	3A	CC5~8%
	VL6003	60V Lead-acid Battery	67.5V	73.5V	3A	CC20%
	VL72025L	72V LiFePO4 Battery		87.6V	2.5A	CC5~8%
	VL72025	72V Lead-acid Battery	81V	88.2V	2.5A	CC20%
Note: customized input / output / plug type / connectors are available.





Quality Control



We have passed Quality Management ISO 9001:2015 and Environmental Management ISO 14001:2015. We control our quality as following 6 steps:



Step 1 Using Famous Brand Components: Only use famous brand and high quality components and choose suppliers with certifications. Guarantee no low quality components get into our warehouse.



Step 2 Inspecting Components: Inspect every batch of incoming components.



Step 3 Qualified Workers Assembling: 2 year qualified workers assemble the battery chargers, high efficiency and low failure rate.



Step 4 Smart Aging System: Using smart aging system to do burn-in test with full load for at least two hours. This system will age battery chargers automatically after setting in computer and record every aging information. Guarantee every battery charger’s components under the good condition.



Step 5 Latest ATE Battery Charger Test System: At last, we do final test by our latest ATE Battery Charger Test System before packing. This system will do more than 10 performances automatic testing and check all functions automatically, recording test data with very fast and precise way, tracking test result, reading, comparing and filing all data, easy to control. Every battery charger has an unique tracking code, when there is a fault on battery charger, we just scan the code and track its manufacturing information.



Step 6 Random Test Before Shipping: Before shipping, we will choose two chargers randomly and test again. This shipment can be released for shipping if there is no problem at random test.
