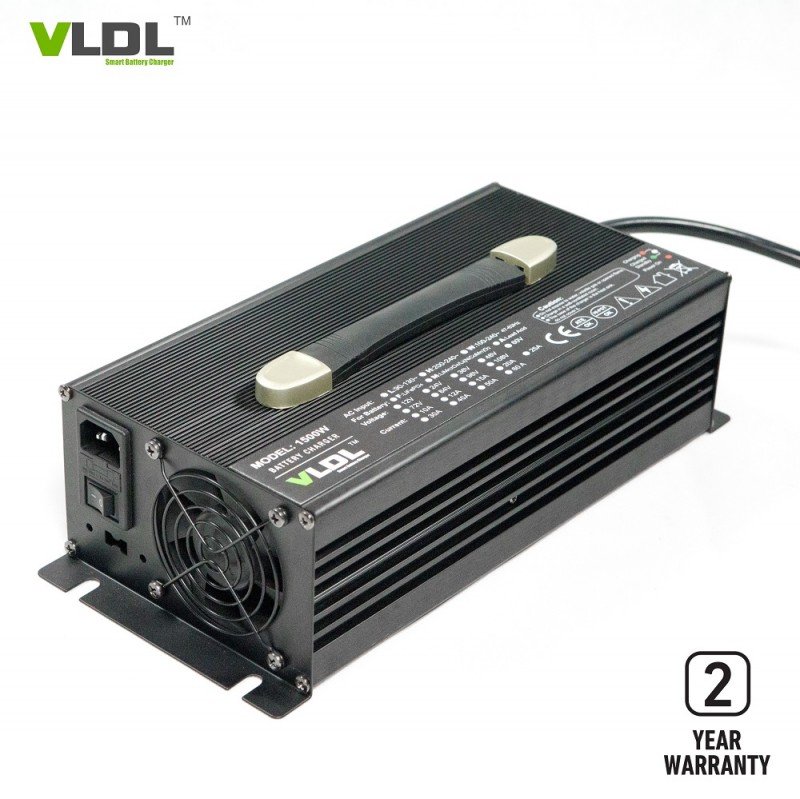

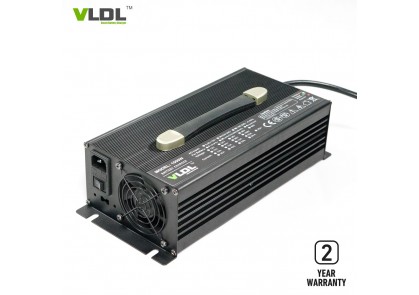

72V 20A E-car Battery Charger
Color Option: Black or Silver
Applied to battery types: 72V Lithium Batteries
Charging method: Pre-charge, CC, CV with automatic Cut-off
Output power series: 1800W
Dimension: 330 x 150 x 90 mm
Input voltage: 110 or 230Vac
Max output: 88.2V or 87.6V 20Amps
Warranty: 2 Years
- Product Details
72V 20A E-car Battery Charger For Lithium Battery, Max 88.2V or 87.6V CC CV charging
Brief Description:
72V 20Amps intelligent lithium battery charger is designed for LiFePO4, Li-ion, LiMnO2 battery, input with single 110V or 230Vac and rated output voltatge is 72 Volt 20 amps. Smart max charging voltage is 88.2V for lead acid type batteries and 87.6V for Lithium batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and protect your battery life to the max. Aluminum housing, light weight and portable.
Features:
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Input 110V or 230Vac, 50Hz~60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..
Possibility to customize charging curve for request.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Efficiency > 90%.
Forced ventilation with fans.
100% full load burn-in test.
Aluminum casing, light weight, portable.
Technical Specs.:
1) Dimensions(LxWxH): 330 x 150 x 90 mm
2) Net weight: 5.5 KG
3) Max charging voltage(CV): 87.6 or 88.2 volts
4) Floating voltage: /
5) Max output current (CC): 20 amps
6) Charging method: CC, CV, floating / trickle or shut off
7) AC input voltage: 110 / 230Vac
8) AC input freq.: 50 / 60 Hz
9) AC plug: custom-made
10) Output connector type: customized by applications
11) Enclosure: Aluminum
AC Input:
110 / 230V
Frequency:
47~63HZ
Output series: 2,000W Size: 330×150×90 mm Net weight: 6.5 KG
Input
Model
Apply to battery types
Floating V
CV (V)
CC (A)
Switching
VL12100L
12V LiFePO4 Battery
14.6V
100A
CC5~8%
VL12100
12V Lead-acid Battery
13.5V
14.7V
100A
CC20%
VL14100
14V AGM Battery
13.5V
14.4V
100A
CC20%
VL16100L
16V LiFePO4 Battery
18.2V
100A
CC5~8%
VL2460LM
24V Li-MnO2 Battery
29.4V
60A
CC5~8%
VL2460L
24V LiFePO4 Battery
29.2V
60A
CC5~8%
VL2460
24V Lead-acid Battery
27.6V
29.4V
60A
CC20%
VL3640LM
36V Li-MnO2 Battery
42V
40A
CC5~8%
VL3640L
36V LiFePO4 Battery
43.8V
40A
CC5~8%
VL3640
36V Lead-acid Battery
41.4V
44.1V
40A
CC20%
VL4830LM
48V Li-MnO2 Battery
54.6V
30A
CC5~8%
VL4830L
48V LiFePO4 Battery
43.8V
30A
CC5~8%
VL4830
48V Lead-acid Battery
55.2V
58.8V
30A
CC20%
VL6025L
60V LiFePO4 Battery
73V
25A
CC5~8%
VL6025
60V Lead-acid Battery
67.5V
73.5V
25A
CC20%
VL7220L
72V LiFePO4 Battery
87.6V
20A
CC5~8%
VL7220
72V Lead-acid Battery
81V
88.2V
20A
CC20%
VL8418L
84V LiFePO4 Battery
102.2V
18A
CC5~8%
VL8418
84V Lead-acid Battery
94.5V
102.9V
18A
CC20%
VL9616L
96V LiFePO4 Battery
116.8V
16A
CC5~8%
VL9616
96V Lead-acid Battery
108V
117.6V
16A
CC20%
Note: customized input / output / plug type / connectors are available.
