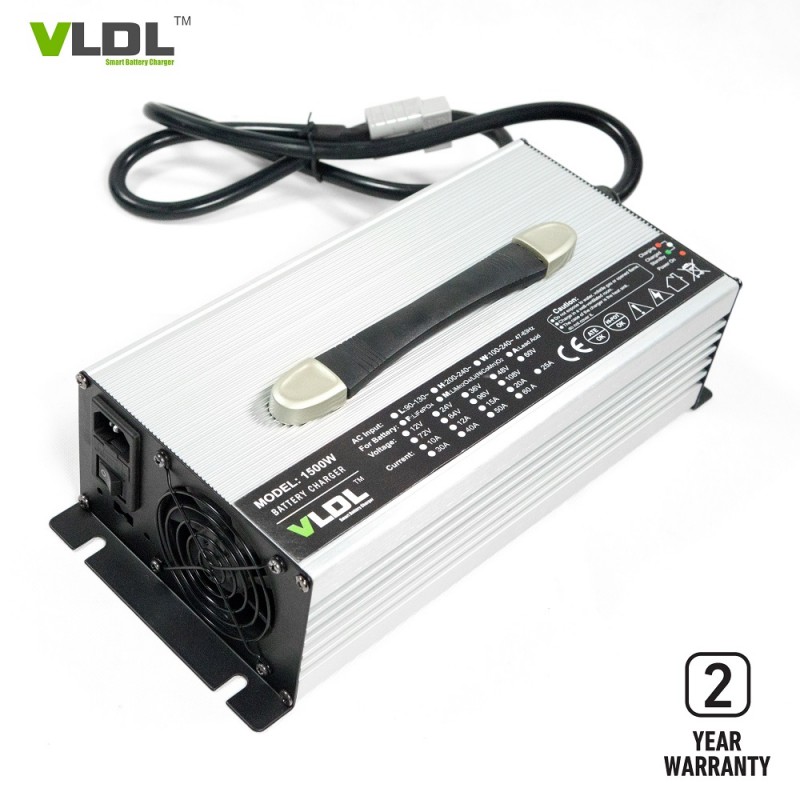

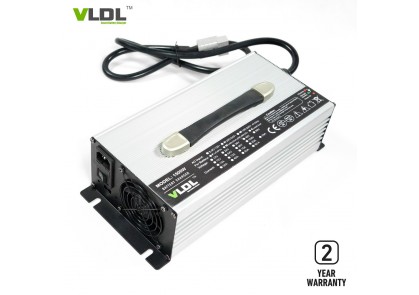

60V 25A LiFePO4 Battery Charger

Item No.: DL6025L

Color Option: Black

Applied to battery types : 60V 20S LiFePO4, Li-ion or Li-Polymer

Charging EV types: E-cars

Charging method: Pre-charge, CC, CV and Automatic Cut-off

Size: 294x 155 x 99mm

Input 110/230Vac, max 73V 25Amps smart charging.

60V 25A LiFePO4 Battery Charger

Input 110/230Vac, max 73V 25Amps smart charging.

Features:

◆ Advanced high frequency switching mode power supply technology.

◆MCUcontrolled(Fully Microprocessor Controlled) charging technologies.

◆ DC output isolated from AC input .

◆5 steps charging(or customized according to your battery type).

◆ LED indicator(3-color): Green-fully charged, Red-charging, Orange-fault.

◆ Protections: Short-circuit, over-voltage, over-temperature, Reverse polarity protections.

◆ Efficiency≥90%.

◆ 100% full load burn-in test.

◆ Aluminum housing, light weight, portable.

Technical Specs.:

1) Dimensions(LxWxH): 380 x 160 x 90 mm

2) Net weight: 7.0 KG

3) Max charging voltage(CV): 73 volt or customized

4) Floating voltage: /

5) Max output current (CC): 25 amps

6) Charging method: automatic CC, CV

7) AC input voltage: 110 or 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user's country

10) Output connector type: customized by applications

11) Enclosure: Aluminum
