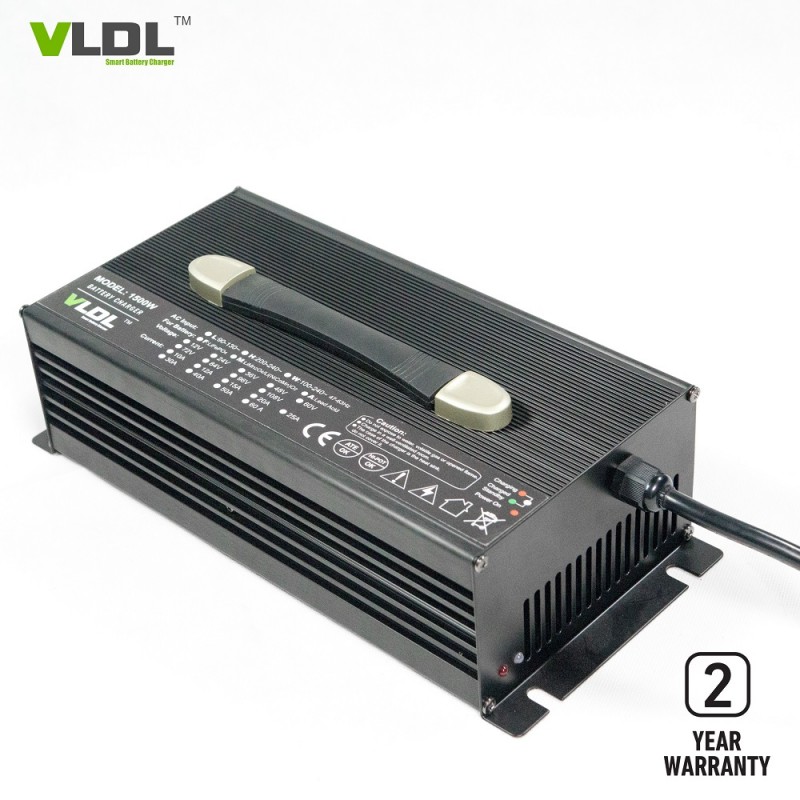

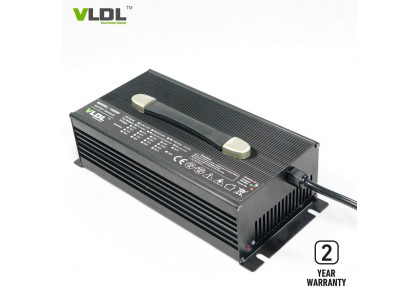

60V 12A Waterproof Battery Charger
Item No.: VL6012LWP
Charger case: Sealed Aluminum
Waterproof rate: IP65 / IP66
Dimension: 263 x 150 x 90 mm
Net weight: 6.5 kg
Input voltage: wide 110-230Vac with PFC
Output-rated: 60V, 12A
Output-max: 73V or customizedApplied to battery types: 60V Lithium Batteries
Charging method: Automatic CC, CV, Floating
Warranty: 2 Years
- Product Details
60V 12A Waterproof / Marine Lithium Battery Charger
Brief Description:
Waterproof / Marine Lithium battery charger 60 volts 12 amps, universal input with AC 110-230Vac with PFC and rated output voltage is DC 60V 12A. Smart max charging voltage is 73V or customize for li-ion, LiFePO4, LiMnO2 type batteries. Intelligent 4 stages charging with CC, CV steps, this charger will charge your battery powered electric vehicles very fast, with high efficiency and protect your battery life maximum. High quality, factory price and 2 years warranty.
Features
Optional charging methods: Li-ion / LiFePO4 / LiMnO2 batteries.
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Wide AC input 110-230Vac, 50Hz ~ 60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic 4 steps charge: pre-charge, CC, CV, floating / trickle or shut-off.
Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
Aluminum casing, light weight, portable.
100% full load burn-in test.
2 years warranty.
Technical Specs.:
Dimensions(LxWxH): 263 x 150 x 90 mm
Net weight: 6.5 KG
Max charging voltage(CV): 73V or customized
Max output current (CC): 12A
Charging method: Pre-charge, CC, CV
AC input voltage: wide 110-230Vac with PFC
AC input freq.: 50 / 60 Hz
AC plug: US, UK, AU, Euro, etc
Output connector type: Clips, Anderson, bare leads, etc
Waterproof rate: IP65 / IP66
Enclosure: Sealed Aluminum
| Output series: 900W waterproof Size: 263×150×90 mm Net weight: 6.5 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 110 / 230V
Frequency: 47~63HZ
|
VL1240L | 12V LiFePO4 Battery | 14.6V | 40A | CC5~8% | |
| VL1240 | 12V Lead-acid Battery | 13.5V | 14.7V | 40A | CC20% | |
| VL1440 | 14V AGM Battery | 13.5V | 14.4V | 40A | CC20% | |
| VL1640L | 16V LiFePO4 Battery | 18.2V | 40A | CC5~8% | ||
| VL2425LM | 24V Li-MnO2 Battery | 29.4V | 25A | CC5~8% | ||
| VL2425L | 24V LiFePO4 Battery | 29.2V | 25A | CC5~8% | ||
| VL2425 | 24V Lead-acid Battery | 27.6V | 29.4V | 25A | CC20% | |
| VL3618LM | 36V Li-MnO2 Battery | 42V | 18A | CC5~8% | ||
| VL3618L | 36V LiFePO4 Battery | 43.8V | 18A | CC5~8% | ||
| VL3618 | 36V Lead-acid Battery | 41.4V | 44.1V | 18A | CC20% | |
| VL4815LM | 48V Li-MnO2 Battery | 54.6V | 15A | CC5~8% | ||
| VL4815L | 48V LiFePO4 Battery | 43.8V | 15A | CC5~8% | ||
| VL4815 | 48V Lead-acid Battery | 55.2V | 58.8V | 15A | CC20% | |
| VL6012L | 60V LiFePO4 Battery | 73V | 12A | CC5~8% | ||
| VL6012 | 60V Lead-acid Battery | 67.5V | 73.5V | 12A | CC20% | |
| VL7210L | 72V LiFePO4 Battery | 87.6V | 10A | CC5~8% | ||
| VL7210 | 72V Lead-acid Battery | 81V | 88.2V | 10A | CC20% | |
| VL8408L | 84V LiFePO4 Battery | 102.2V | 8A | CC5~8% | ||
| VL8408 | 84V Lead-acid Battery | 94.5V | 102.9V | 8A | CC20% | |
|
Note: customized input / output / plug type / connectors are available. |
||||||
