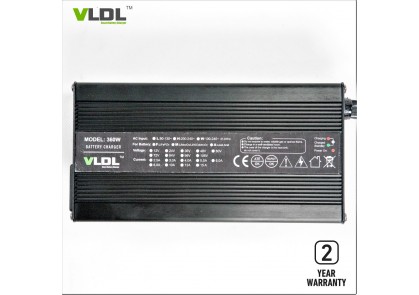

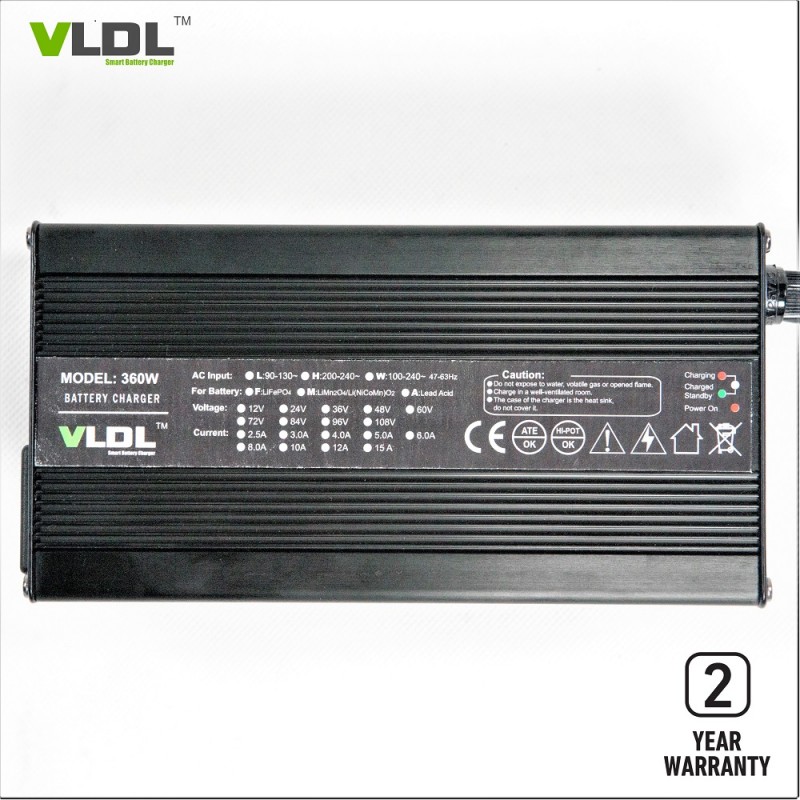

58.4V 5A LiFePO4 Battery Charger

Smart 48V 58.4V 5A LiFePO4 Battery Charger

For Electric Motorcycle

Descriptions:
LiFePO4 battery charger 48V 5A was designed for li battery. Totally micro-processor controlled and automatic charging by battery's state. Max charging voltage can be set at 58.4.4V for 16S 48V LiFePO4 battery pack. As a 15 years battery charger factory, Danl gurrantees 2 years warranty for all of our chargers, high quality and in 24 hours response after-service. Bring safty and best service to our customers.

Specifications:
AC input voltage: 110 or 230Vac
AC input freq.: 50 / 60 Hz
Rated output: 48V 5Amps
Max charging voltage: 58.4V
Dimensions(LxWxH): 170 x 90 x 63 mm
Net weight: 1.5 KG
Housing: Aluminum
Color: Silver or Black

Techonolgy & Advantages:
High Frequency Switching Mode Power Supply.
Intelligent Micro-processor Controlled.
Smart and Automatic 4 Steps Charging.
Aluminum Casing, Light Weight, Portable.
High Quality, Factory Price.

Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Applications:
Automatic Charging For 48V Lead-acid or Lithium Batteries.
Suit for E-Bikes, E-Scooters, E-Skateboard, E-Motorcycles, E-golfcarts.

Special Functions For EV:
1) In-lock signal is available: EV can't start when charging.
2) Remote signal wire is available for connecting control digital display board.

Warranty:
Fully 2-year warranty with Free Replacing Policy.
Response in 24 hours after getting failed product report from customers.

Related Models of 360W Charger:

Output series: 360W     Size: 170×90×63 mm     Net weight: 1.5 KG
Input	Model	Apply to battery types	Floating V	CV (V)	CC (A)	Switching
AC Input: 110 / 230V Frequency: 47~63HZ	VL1220L	12V LiFePO4 Battery		14.6V	20A	CC5~8%
	VL1220	12V Lead-acid Battery	13.5V	14.7V	20A	CC20%
	VL2410LM	24V Li-MnO2 Battery		29.4V	10A	CC5~8%
	VL2410L	24V LiFePO4 Battery		29.2V	10A	CC5~8%
	VL2410	24V Lead-acid Battery	27.6V	29.4V	10A	CC20%
	VL3608LM	36V Li-MnO2 Battery		42V	8A	CC5~8%
	VL3608L	36V LiFePO4 Battery		43.8V	8A	CC5~8%
	VL3608	36V Lead-acid Battery	41.4V	44.1V	8A	CC20%
	VL4805LM	48V Li-MnO2 Battery		54.6V	5A	CC5~8%
	VL4805L	48V LiFePO4 Battery		43.8V	5A	CC5~8%
	VL4805	48V Lead-acid Battery	55.2V	58.8V	5A	CC20%
	VL6004L	60V LiFePO4 Battery		73V	4A	CC5~8%
	VL6004	60V Lead-acid Battery	67.5V	73.5V	4A	CC20%
	VL7203L	72V LiFePO4 Battery		87.6V	3A	CC5~8%
	VL7203	72V Lead-acid Battery	81V	88.2V	3A	CC20%
Note: customized input / output / plug type / connectors are available.
