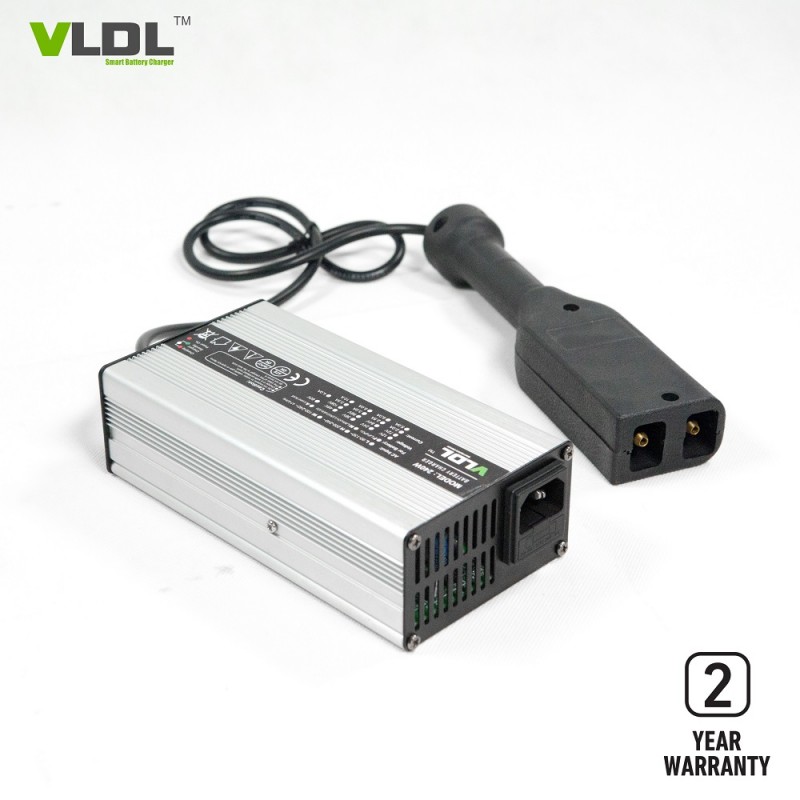

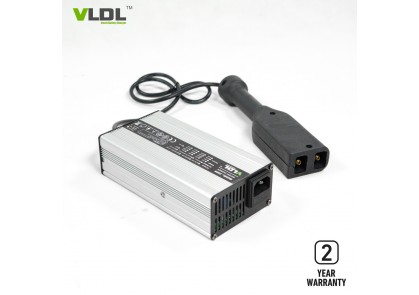

58.4V 4A Lithium Battery Charger
Color Option: Silver or Black
Charging method: Pre-charge, CC, CV and Cut-off
Applied to battery types : 48V Li-ion/LiFePO4/LiMnO2 battery pack
Dimensions: 170 x 90 x 50mm
Input voltage: 110 or 230Vac
Max charging: Automatic 54.6V / 58.4V / 58.8V 4 Amps charging
- Product Details
58.4V 4A Lithium Battery Charger, Smart and Automatic Charging
Descriptions:
Lithium-ion battery charger 54.6V 4A was designed for Electric Mobility / Scooters. Totally micro-processor controlled and automatic charging by battery's state. Max charging voltage can be set at 54.6V for Lithium-ion battery types. As a 15 years battery charger factory, Danl gurrantees 2 years warranty for all of our chargers, high quality and in 24 hours response after-service. Bring safty and best service to our customers.
Specifications:
AC input voltage: 110 / 230Vac
AC input freq.: 50 / 60 Hz
Rated output: 48V 4Amps
Max charging voltage: 58.4V
Dimensions(LxWxH): 170 x 90 x 50 mm
Net weight: 1.0 KG
Housing: Aluminum
Color: Silver or Black
Techonolgy & Advantages:
High Frequency Switching Mode Power Supply.
Intelligent Micro-processor Controlled.
Smart and Automatic 4 Steps Charging.
Aluminum Casing, Light Weight, Portable.
High Quality, Factory Price.
Protections:
Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Applications:
Automatic Charging For 48V Lithium ion Batteries.
Suit for E-mobility, E-scooters, E-motorcycles.
Special Functions For EV:
1) In-lock signal is available: EV can't start when charging.
2) Remote signal wire is available for connecting control digital display board.
Warranty:
Fully 2-year warranty with Free Replacing Policy.
Response in 24 hours after getting failed product report from customers.
Related Models of 240W Charger:
| Output series: 240W Size: 170×90×50 mm Net weight: 1.0 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 85~264V
Frequency: 47~63HZ
|
VL1210L | 12V LiFePO4 Battery | 14.6V | 10A | CC5~8% | |
| VL1210 | 12V Lead-acid Battery | 13.5V | 14.7V | 10A | CC20% | |
| VL2407LM | 24V Li-MnO2 Battery | 29.4V | 7A | CC5~8% | ||
| VL2407L | 24V LiFePO4 Battery | 29.2V | 7A | CC5~8% | ||
| VL2407 | 24V Lead-acid Battery | 27.6V | 29.4V | 7A | CC20% | |
| VL3605LM | 36V Li-MnO2 Battery | 42V | 5A | CC5~8% | ||
| VL3605L | 36V LiFePO4 Battery | 43.8V | 5A | CC5~8% | ||
| VL3605 | 36V Lead-acid Battery | 41.4V | 44.1V | 5A | CC20% | |
| VL4804LM | 48V Li-MnO2 Battery | 54.6V | 4A | CC5~8% | ||
| VL4804L | 48V LiFePO4 Battery | 43.8V | 4A | CC5~8% | ||
| VL4804 | 48V Lead-acid Battery | 55.2V | 58.8V | 4A | CC20% | |
| VL6003L | 60V LiFePO4 Battery | 73V | 3A | CC5~8% | ||
| VL6003 | 60V Lead-acid Battery | 67.5V | 73.5V | 3A | CC20% | |
| VL72025L | 72V LiFePO4 Battery | 87.6V | 2.5A | CC5~8% | ||
| VL72025 | 72V Lead-acid Battery | 81V | 88.2V | 2.5A | CC20% | |
| Note: customized input / output / plug type / connectors are available. | ||||||
