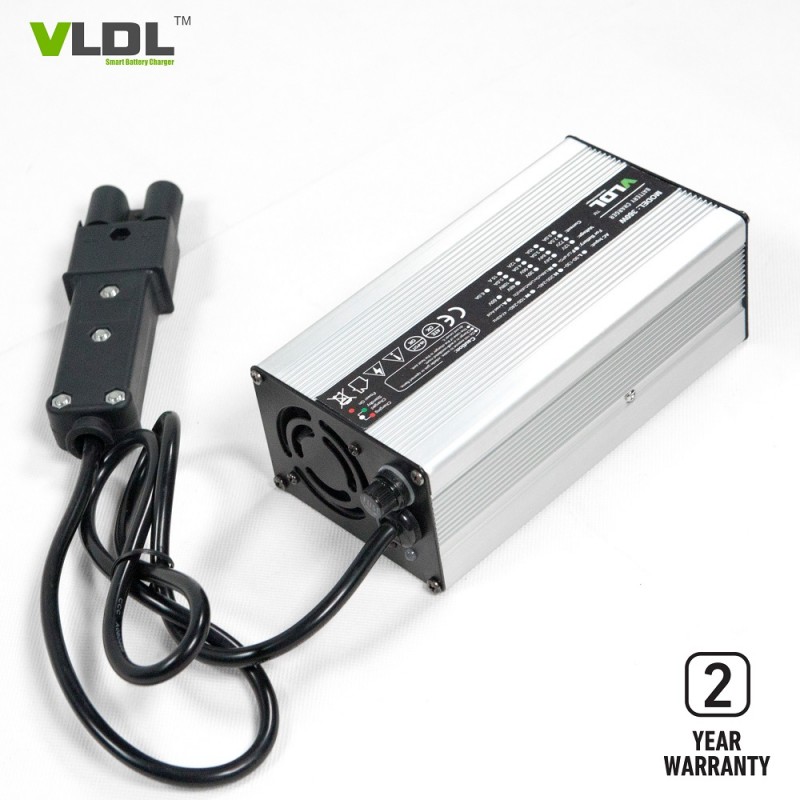

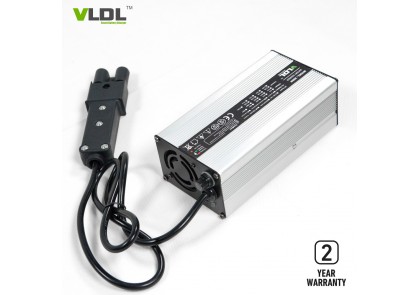

36V 8A PFC Lithium Battery Charger
Color Option: Silver or Black
Charging method: Pre-charge, CC, CV and Cut-off
Applied to battery types : 36V Li-ion/LiFePO4/LiMnO2 battery pack
Dimensions: 212 x 105 x 60 mm
Net weight: 1.5 kg
Input voltage: Wide 90~264Vac with PFC
Max charging: Automatic 42V / 43.8V 8 Amps charging
Warranty: 2 Years
- Product Details
36V 8A PFC Battery Charger For Lithium or Lead-acid Batteries, Suit For AC Power From Generator
Brief Description:
PFC 36V 8Amps intelligent lithium battery charger is designed for lithium or lead acid battery, input with worldwide 90~264Vac with PFC circuit and rated output voltatge is 36 Volt 8 amps. Smart max charging voltage is 44.1V for lead acid type batteries and 42 / 43.8V for LiFePO4 batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your batteries with very fast speed, with high efficiency and pretect your battery life maximumly. Aluminum housing, light weight and portable.
Features:
Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Auto worldwide Input 110 / 230Vac(90 ~ 264Vac) with PFC, 50Hz~60Hz.
Charging parameters are insensitive to the AC input line voltage variations.
Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
2 LEDs: LED1 Red (power on), LED2 Red / green (charging/full)..
Possibility to customize charging curve for request.
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
Efficiency > 90%.
Forced ventilation with fans.
100% full load burn-in test.
Aluminum casing, light weight, portable.
Technical Specs.:
1) Dimensions(LxWxH): 212 x 105 x 60 mm
2) Net weight: 1.5 KG
3) Max charging voltage(CV): 42/ 44.1 volts
4) Floating voltage: /
5) Max output current (CC): 8 amps
6) Charging method: pre-charge, CC, CV
7) AC input voltage: 90~264 Vac with PFC
8) AC input freq.: 50 / 60 Hz
9) AC plug: UK, US, AU, EU, etc.
10) Output connector type: clips, anderson, XLR, etc.
11) Enclosure: Aluminum
| Output series: 360W Size: 212×105×60 mm Net weight: 1.5 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input:
110 / 230V
Frequency: 47~63HZ
|
VL1220L | 12V LiFePO4 Battery | 14.6V | 20A | CC5~8% | |
| VL1220 | 12V Lead-acid Battery | 13.5V | 14.7V | 20A | CC20% | |
| VL2412LM | 24V Li-MnO2 Battery | 29.4V | 12A | CC5~8% | ||
| VL2412L | 24V LiFePO4 Battery | 29.2V | 12A | CC5~8% | ||
| VL2412 | 24V Lead-acid Battery | 27.6V | 29.4V | 12A | CC20% | |
| VL3608LM | 36V Li-MnO2 Battery | 42V | 8A | CC5~8% | ||
| VL3608L | 36V LiFePO4 Battery | 43.8V | 8A | CC5~8% | ||
| VL3608 | 36V Lead-acid Battery | 41.4V | 44.1V | 8A | CC20% | |
| VL4805LM | 48V Li-MnO2 Battery | 54.6V | 5A | CC5~8% | ||
| VL4805L | 48V LiFePO4 Battery | 43.8V | 5A | CC5~8% | ||
| VL4805 | 48V Lead-acid Battery | 55.2V | 58.8V | 5A | CC20% | |
| VL6004L | 60V LiFePO4 Battery | 73V | 4A | CC5~8% | ||
| VL6004 | 60V Lead-acid Battery | 67.5V | 73.5V | 4A | CC20% | |
| VL7203L | 72V LiFePO4 Battery | 87.6V | 3A | CC5~8% | ||
| VL7203 | 72V Lead-acid Battery | 81V | 88.2V | 3A | CC20% | |
| Note: customized input / output / plug type / connectors are available. | ||||||
Battery Knowledge
Q. What do the abbreviations MF, GEL and AGM mean?
A. Gel, AGM, Vlies, MF, Calcium/Calcium and Hybrid are abbreviations for different types of lead-acid batteries.
Q. What do the abbreviations LiFePO4, Li-ion, Li-MnO2 and LiCoO2 mean?
A. LiFePO4, Li-ion, Li-MnO2 and LiCoO2 are abbreviations for different types of lithium batteries, that means there batteries using different cathode materials. Different batteries have different charging voltages.
