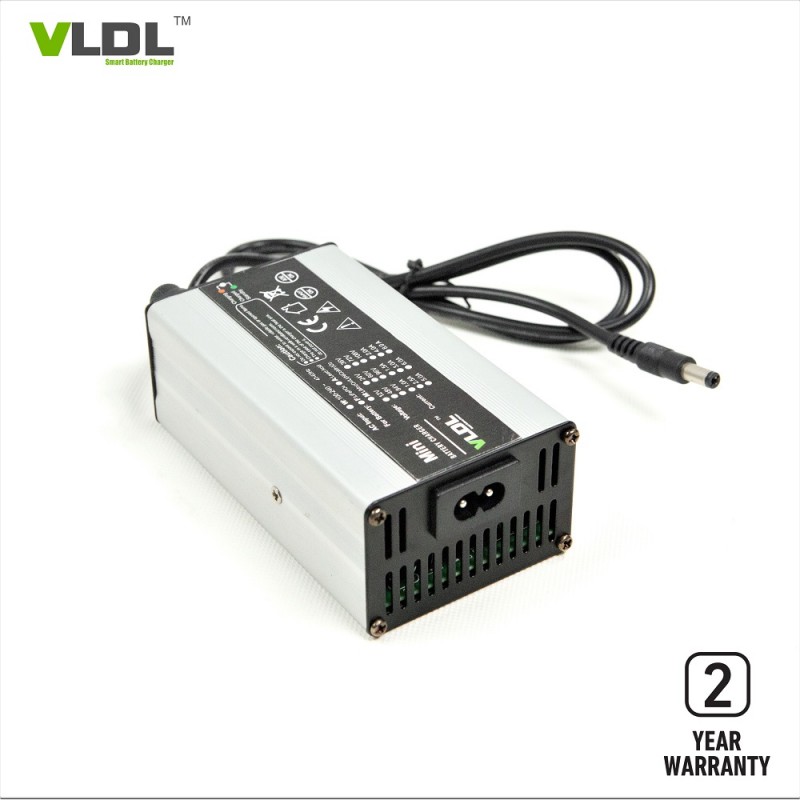

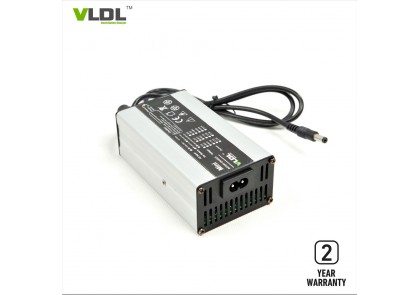

12V 6A Li Battery Charger
Item No.: DL1206L
Case material: Aluminum
Input voltage: wide 110-230Vac
Rated output: 12Vdc, 6Amps
Max charging: 14.4V / 14.6V customized
Applied toBattery Types: 12V 4S LiFePO4/Li-ion/Li-polymer
Charging method: auto. CC, CV or Cut-off
Size: 135x 90 x 50mm
Net weight: 0.6kg
Warranty: 2 years
- Product Details
High Efficiency 12V 6A Lithium Battery Charger For 3S Lithium Ion Battery Pack
Brief Description:
Lithium ion battery charger 12 volt 6 amps with universal 110 - 230 vac input. Black or silver aluminum casing. Rated ouput 12V 6A and max charging voltage is 14.4 or 14.6V.
As a swtiching mode technology battery charger, it has small size and light weight, much portable for user. This charger has intelligent 4 steps charging method and charge your lithium battery types inclduing LiFePO4, Li ion, LiMO2 batteries with fast speed and high efficiency. It is a fully automatic charging charger, just power on and connect it to your battery and then leave it alone.
Features:
◆ Advanced high frequency switching mode power supply technology.
◆ DC output isolated from AC input.
◆ Auto worldwide Input 110 / 230Vac(90 ~ 264Vac), 50Hz~60Hz.
◆ Charging parameters are insensitive to the AC input line voltage variations.
◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
◆ 1 LED: LED Red-Charging, LED Green-Fully Charged or Stand by
◆ Possibility to customize charging curve for request.
◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
◆ Efficiency > 95%.
◆ Forced ventilation with fans.
◆ 100% full load burn-in test.
◆ Aluminum casing, light weight, portable.
Technical Specs.:
1) Dimensions(LxWxH): 120 x 69 x 45 MM
2) Net weight: 0.6 KG
3) Max charging voltage(CV): 14.4 / 14.6 volts
4) Floating voltage: customized
5) Max output current (CC): 6 amps
6) Charging method: pre-charge, CC, CV, floating / trickle or shut off
7) AC input voltage: 110 - 240Vac
8) AC input freq.: 50/60 Hz
9) AC plug: customized by user’s country
10) Output connector type: customized by applications
11) Enclosure: Aluminum
| Output series: 120W Mini Size: 120×69×45 mm Net weight: 0.6 KG | ||||||
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
|
AC Input: 85~264V
Frequency: 47~63HZ
|
VL1206L | 12V LiFePO4 Battery |
|
14.6V | 6A | CC5~8% |
| VL1206 | 12V Lead-acid Battery | 13.5V | 14.7V | 6A | CC20% | |
| VL2404LM | 24V Li-MnO2 Battery |
|
29.4V | 4A | CC5~8% | |
| VL2404 | 24V Lead-acid Battery | 27.6V | 29.4V | 4A | CC20% | |
| VL3603L | 36V Li-MnO2 Battery |
|
42V | 3A | CC5~8% | |
| VL3602 | 36V Lead-acid Battery | 41.4V | 44.1V | 2A | CC20% | |
| VL4802LM | 48V Li-MnO2 Battery |
|
54.6V | 2A | CC5~8% | |
| VL4802 | 48V Lead-acid Battery | 55.2V | 58.8V | 2A | CC20% | |
| Note: customized input / output / plug type / connectors are available. | ||||||
FAQ
About DANL Company
Q. Are you a factory or trading company?
A. Danl is battery charger factory and we found in 2008. We have being in switching mode power supply and charger industrial for 15 years and have 10 years of exporting experience to worldwide especially to the high lever market of North America and Euro countries.
Q. What's about the warranty for Danl battery chargers?
Danl promises that we provide full 2 years warranty for our battery chargers. No return for faulty battery chargers firstly, we send you new replacing chargers firstly. Danl adopts latest ATE Automatic Battery Charger Testing System to test all of our battery chargers before shipping, guaranteeing extremely low rate of failure. So we have confidence to provide 2 years warranty.
Q. Do you accept OEM order?
A. Yes, we do. Danl provides OEM, ODM service. Please just tell us your project and we will provide a full charging solution for you, for example, your customized electric vehicles, sun-powered stations, racing batteries, on-board charging, etc.
Q. What is about the lead time for an order?
A. Normally, lead time is 7 days. If need large quantity, say 500 to 1000pcs, it will take about 15 days. If you need ODM charging solution, lead time depends on technical request, often it needs about 30 days.
Q. What certification do you have?
A. We have CE, RoHS, CB currently. We will add and pass the test of certificate which applied in your country.
Q. Why choose your smart battery chargers?
A. Because our battery chargers have high quality but reasonable factory price. First, we do not use cheap and unreliable components to save cost like other charger factories who have very cheap price. Second, we use latest ATE smart battery charger test and aging system and guarantee the quality of every battery chargers.
